Dashed & Dotted Lines in Tableau | Line Patterns - New in tableau 2023.2

After 11 years on the ideas page, Tableau 2023.2 finally lets you draw dashed and dotted lines.

Tim Ngwena •16 June 2023 •2 min read •3 min watch •6K

Part ofWhat's new in Tableau 2023.2

Watch on YouTube

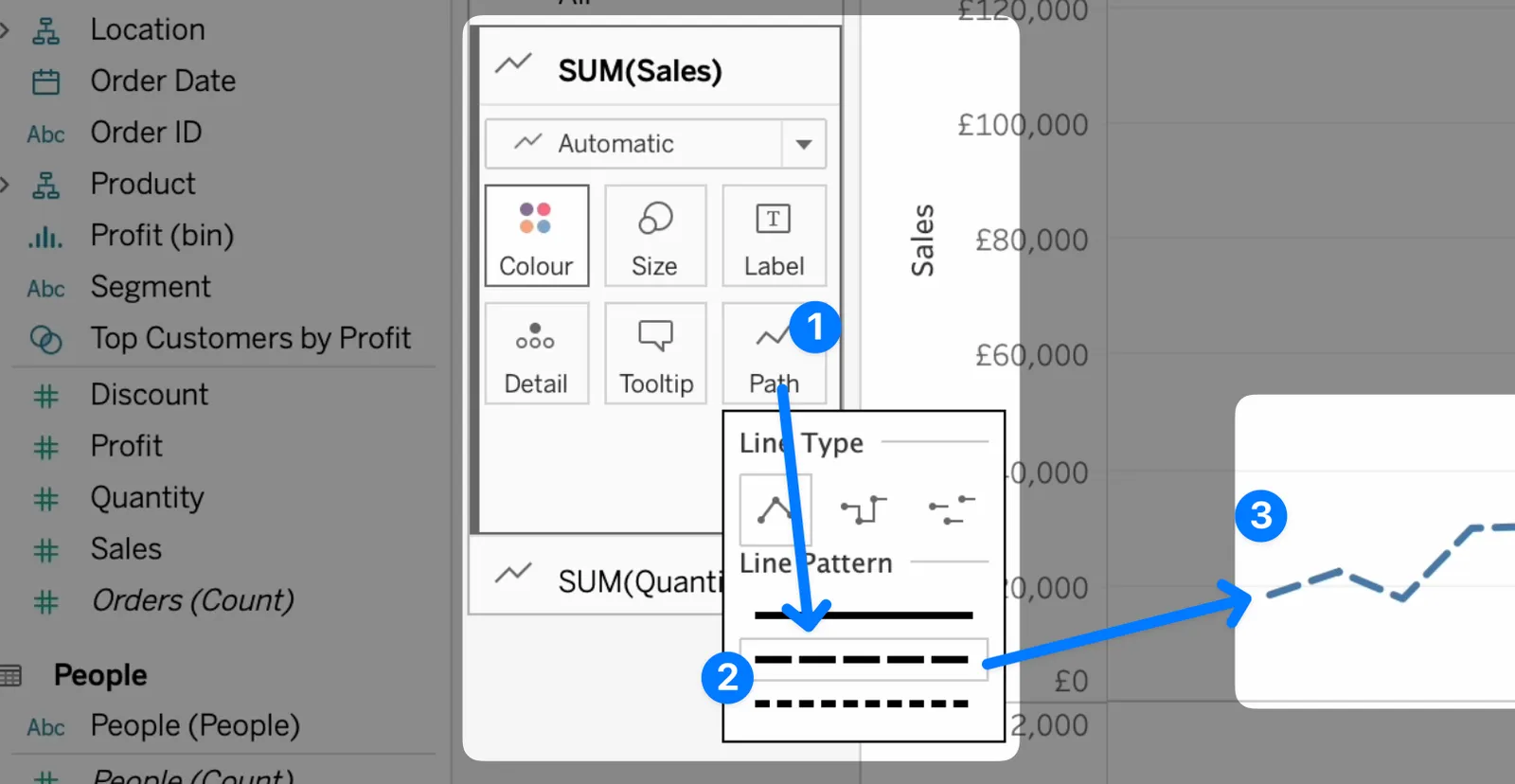

Tableau 2023.2 adds dashed and dotted line patterns alongside the original solid line, accessed through the Path property on the Marks card
Applying the pattern on the 'All' section changes every line, while selecting an individual pill lets you set patterns independently
Line patterns are especially useful on dual-axis charts to distinguish things like a forecast or modelled variant from actual values

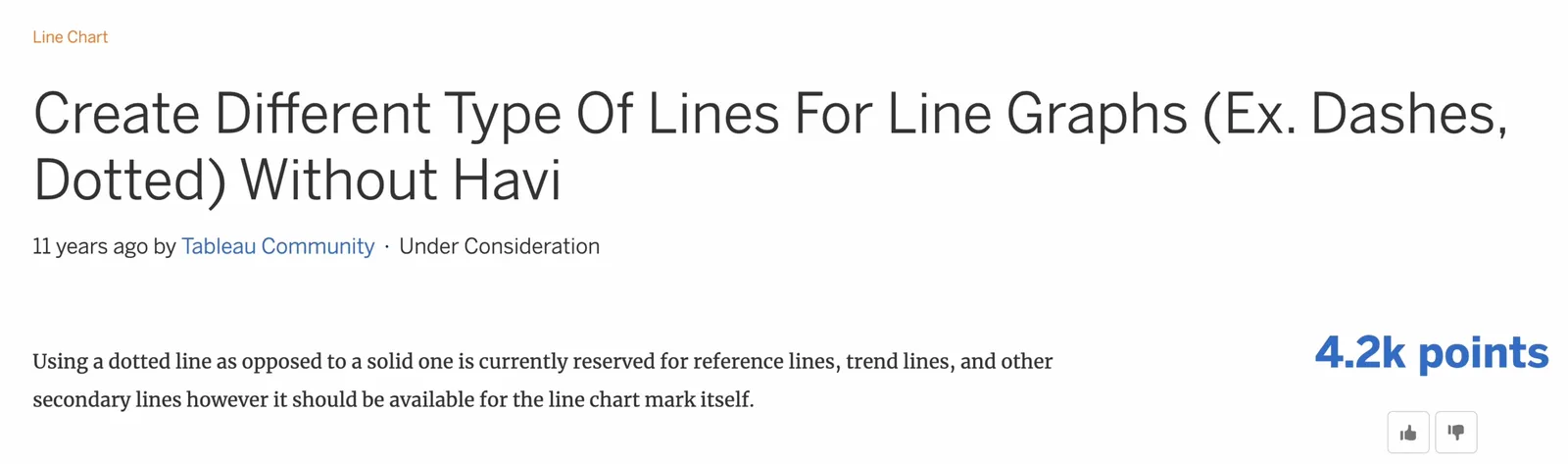

This feature finally delivers an 11-year-old Tableau community idea that had accumulated over 4,000 points
Tim's wish-list addition: the ability to add line patterns as labelled legend items, since legends currently only communicate colour
